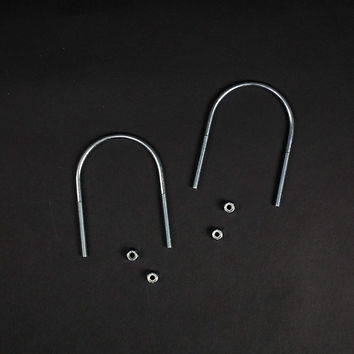

U Bolt Attachment Hardware​

U-Bolt Sizing and Application

- 1-3/8" W x 2-3/4" L x 1/4" thickness - for 1" to 1-1/4" Outside



Diameter line size
- 2" W x 3-1/4" L x 1/4" thickness - for 1-1/2" Outside Diameter line size
- 2-1/2" W x 3-3/16" L x 1/4" thickness - for 2" Outside Diameter line size
- 2-5/8" W x 4-1/4" L x 1/4" thickness - for 2-1/2" Outside Diameter line size
- 3" W x 4-3/8" L x 1/4" thickness - for 2-½” Outside Diameter line size
- 3-1/2" W x 4-3/4" L x 1/4" thickness - for 3" Outside Diameter line size
- 4" W x 5-1/2" L x 1/4" thickness - for 3-1/2" Outside Diameter line size

​

SprinkGUARD can also custom design guards to meet your specific specifications and unique application.

​

Item: UBZ
