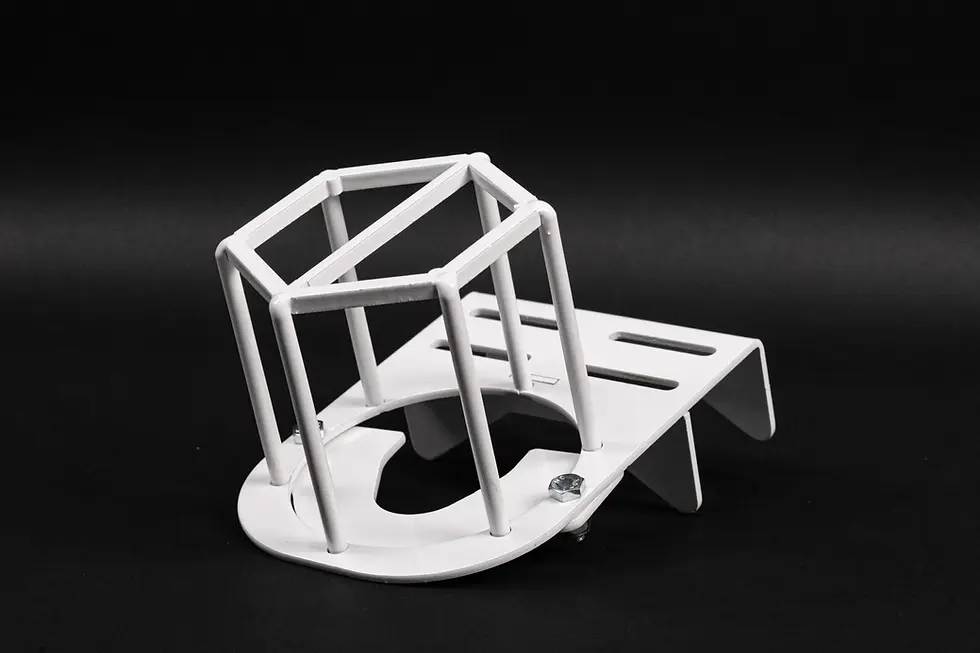

The Endline CKE SprinkGUARD is designed to protect sprinkler heads with an intermediate water shield/heat collector affixed to the sprinkler head. The Endline CKE guard protects sprinkler heads located in various applications like pallet rack from inadvertent activation by foreign objects. The Endline CKE SprinkGUARD can be used with upright and pendant style sprinkler heads that have an intermediate water shield. The Endline CKE unit is designed to accommodate larger orifice sprinkler heads while still preventing accidental activation.
The Endline CKE guard has a larger base plate hole opening which allows the guard to lower down over the large sprinkler head (or intermediate water shield). Also provided with the
Endline CKE is a lock-out plate to secure the guard and prevent it from rotating, when struck with force, into the sprinkler head and causing activation.
Please review this guard's specific Product page to verify classification and application.
SprinkGUARD can also custom design guards to meet your specific specifications and unique application.
Endline CKE
Quantity Price 1 - 99 $40.50 100 - 499 $40.00 500 - 999 $39.50 1000 - 9999 $39.00 Weight 1.8 lbs Dimensions 7 × 5 × 5.37 in Product Specifications Material & Finish
– Laser-cut, mild grade steel
– Durable powder coat finish
– Stainless Steel Available – Please contact us.Hardware Specifications U-Bolt Sizing and Application
– 1-3/8" W x 2-3/4" L x 1/4" thickness – for 1" Outside Diameter line size
– 2" W x 3-1/4" L x 1/4" thickness – for 1-¼” to 1-1/2" Outside Diameter line sizes
– 2-5/8" W x 4-1/4" L x 1/4" thickness – for 2" to 2-½” Outside Diameter line size
– 3" W x 4-3/8" L x 1/4" thickness – for 2-½” Outside Diameter line size
– 3-1/2" W x 4-3/4" L x 1/4" thickness – for 3" Outside Diameter line size
– 4" W x 5-1/2" L x 1/4" thickness – for 3-1/2" Outside Diameter line size
